Cabinet Hardware Jig — CNC Aluminum Door Mount
CNC aluminumLeft/right flip

Cabinet Hardware Jig — CNC Aluminum Door Mount

Clamp it on the door, drill through the steel bushings, flip it for the next door. Every pull and knob lands at the same spot without re-measuring.

$51.00 $87.99 -42%

16 customers with paid orders

Style1x Hardware Jig

30-day returnsSecure checkout

VisaMastercardAmerican ExpressApple PayGoogle PayPayPal
CNCMachined aircraft-grade aluminum
FlipLeft or right door, no recalibrating
SteelCase-hardened bushings
AdjustableSet the spacing for each pull size

Hardware on in three steps

  1. Mount and lock

    Set the jig on the door or drawer face and clamp it.

  2. Set the spacing

    Adjust the drilling distance to your handle or knob and lock it.

  3. Drill and flip

    Drill through the bushings, then flip the jig for the opposite door.

Why every pull lines up

  • CNC-machined pockets put the holes in the same place on every door.
  • Case-hardened steel bushings guide the bit, so the holes do not drift as the jig ages.

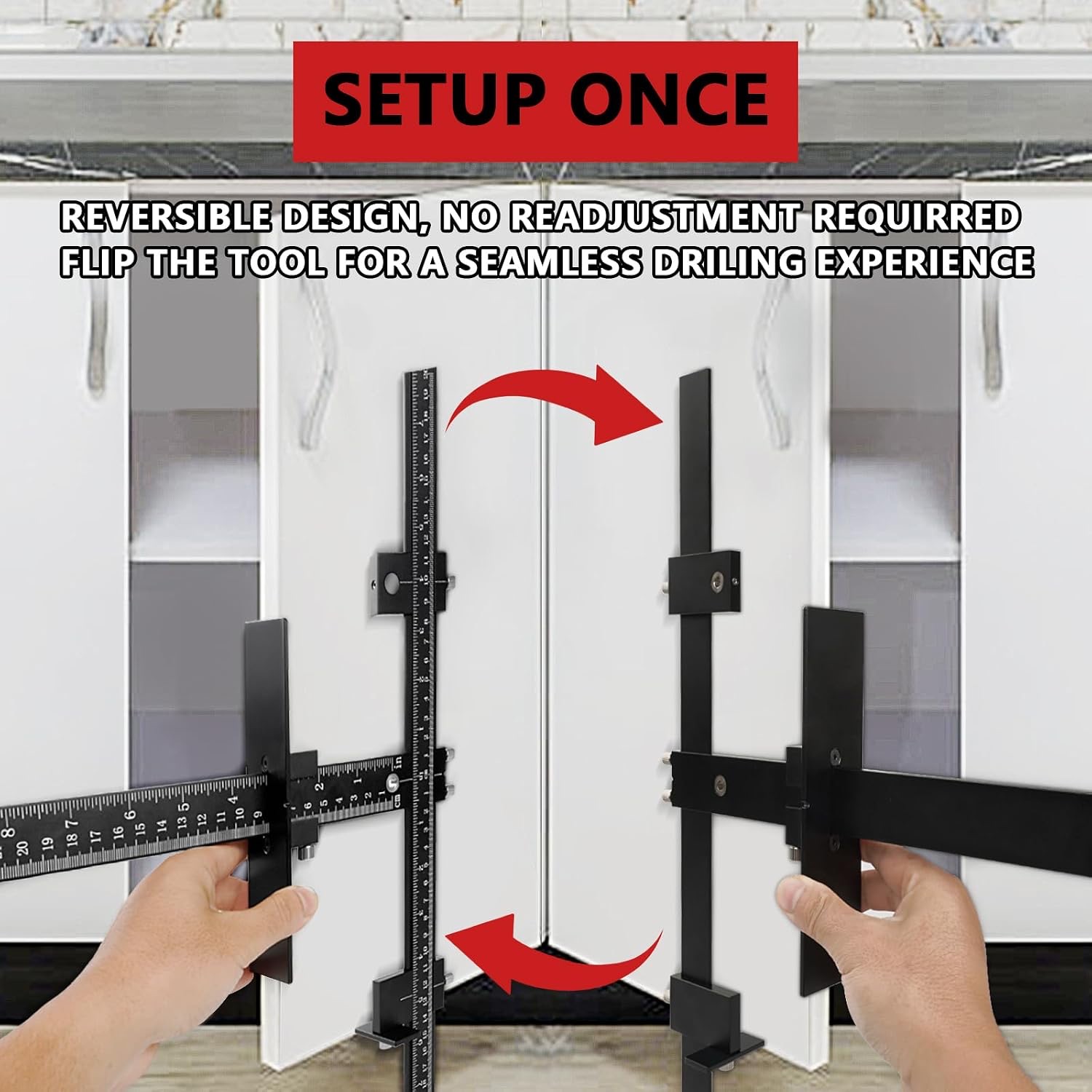

  • Flips between left and right doors without resetting.
  • Forged aircraft-grade aluminum with a black anodized finish resists bending and corrosion.

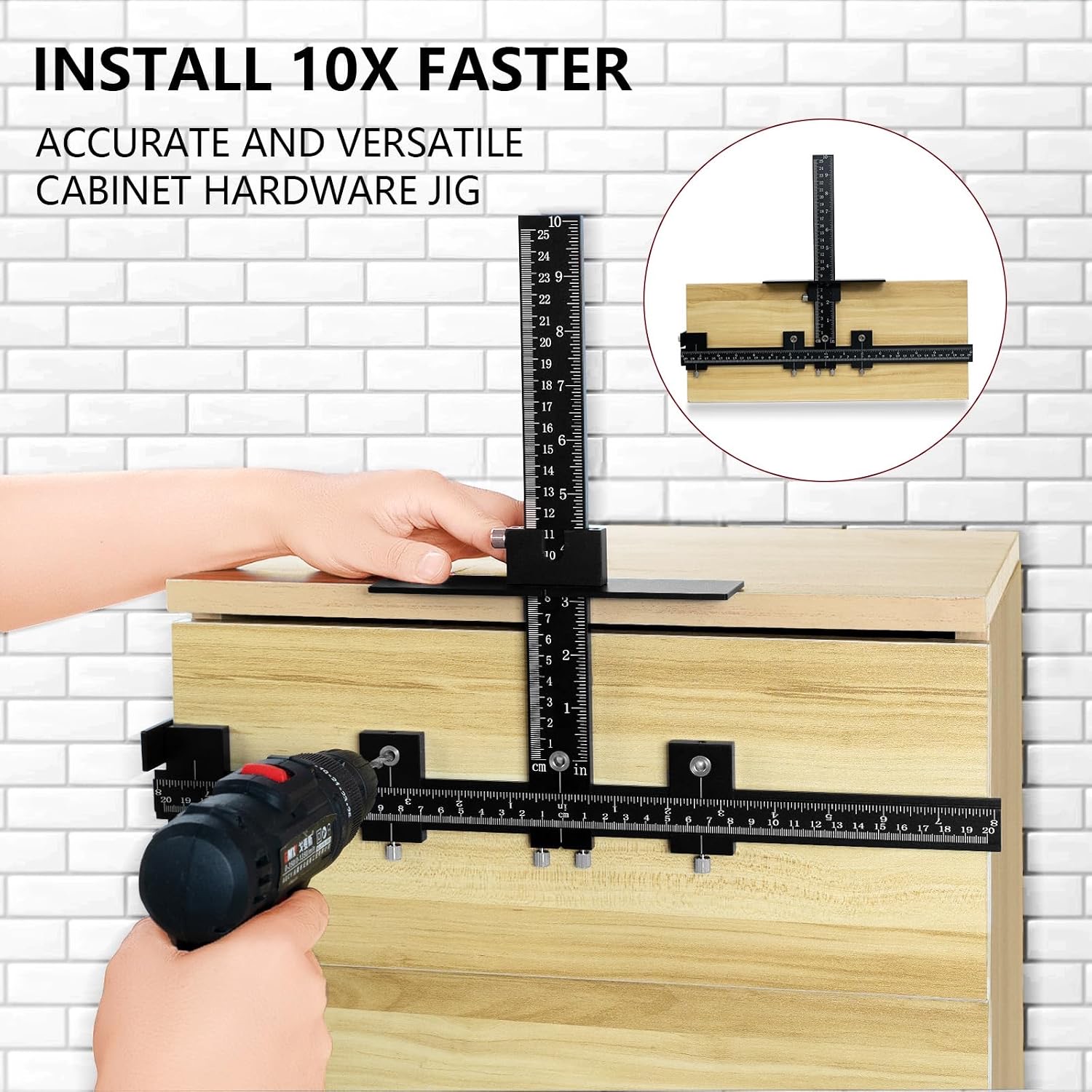

Cabinet hardware jig clamped to a cabinet door

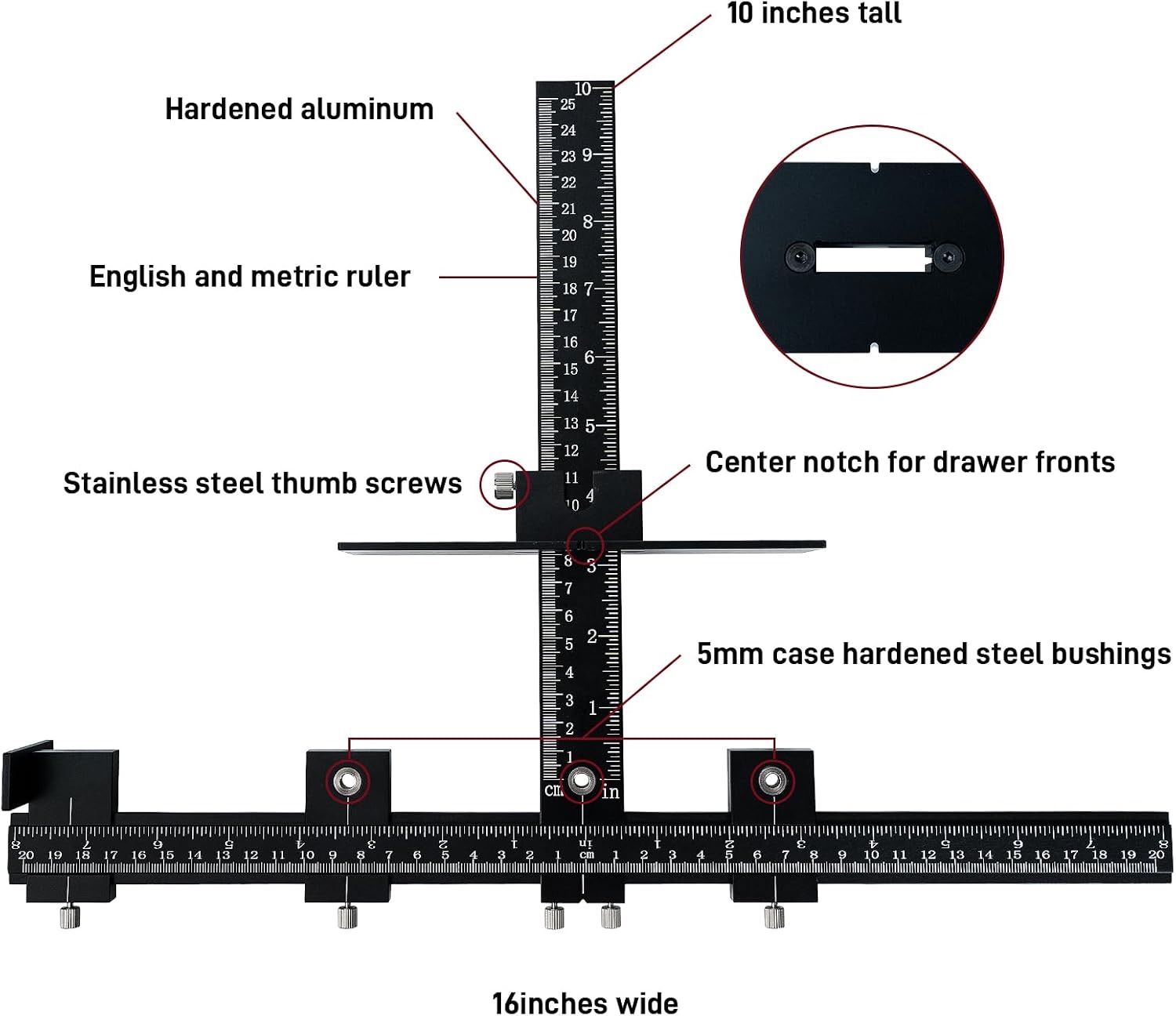

Specifications

MaterialForged aircraft-grade aluminum
FinishBlack anodized
BushingsCase-hardened steel, rated for 10,000+ holes
Drilling distanceAdjustable for different pull spacings
MountingDoor mount
Typical useDrawer pulls, door handles, knobs

Questions

Does it work for knobs and pulls?

Yes. Set the drilling distance for your pull spacing, or use a single hole for knobs.

Do I need to reset it for the other door?

No. Flip it over for the opposite door and keep drilling.

Will the holes wander after heavy use?

The bit runs in case-hardened steel bushings, not the aluminum, so the guide holds its size.

What if it doesn't work for me?

Return it unused within 30 days. Contact us with your order number and we will walk you through it.

Customer reviews

4.88 reviews
  1. 5★6
  2. 4★2
  3. 3★0
  4. 2★0
  5. 1★0
Thomas M.Verified buyer
★★★★★

Cabinet shop here. Installed hardware on 120 cabinet doors last month. Set this jig once, drilled 240 holes, all aligned like they came from a CNC machine.

Pack: 1x Hardware Jig
Linda K.Verified buyer
★★★★★

Flipping between left and right drawers without recalibration is the feature I didn't know I needed. Saves twenty minutes per project.

Pack: 1x Hardware Jig
Rick H.Verified buyer
★★★★★

Woodworking hobby turned side business. Hardware jig makes me look professional. Customers see perfectly placed pulls and ask for my work.

Pack: 1x Hardware Jig
Veronica R.Verified buyer
★★★★☆

Quality is obvious the moment you hold it. Steel bushings definitely feel different than the brass copies. Only wish it came with drill bits sized to the holes.

Pack: 1x Hardware Jig
Jordan L.Verified buyer
★★★★★

Contractor, residential remodels. This jig travels with me. Black anodized finish still looks new after three months on job sites.

Pack: 1x Hardware Jig
Michelle T.Verified buyer
★★★★★

Built-in cabinetry in a rental. The spacing on all the hardware is dead-on identical. My tenant said the kitchen looks custom.

Pack: 1x Hardware Jig
Andrew S.Verified buyer
★★★★★

Aircraft-grade aluminum is not hype. Threw it in the truck bed with nail guns and it came out looking like day one.

Pack: 1x Hardware Jig
Grace W.Verified buyer
★★★★☆

Learning to build custom cabinetry and this tool makes me feel like a pro. Drilling is the part I was terrified of — not anymore.

Pack: 1x Hardware Jig
