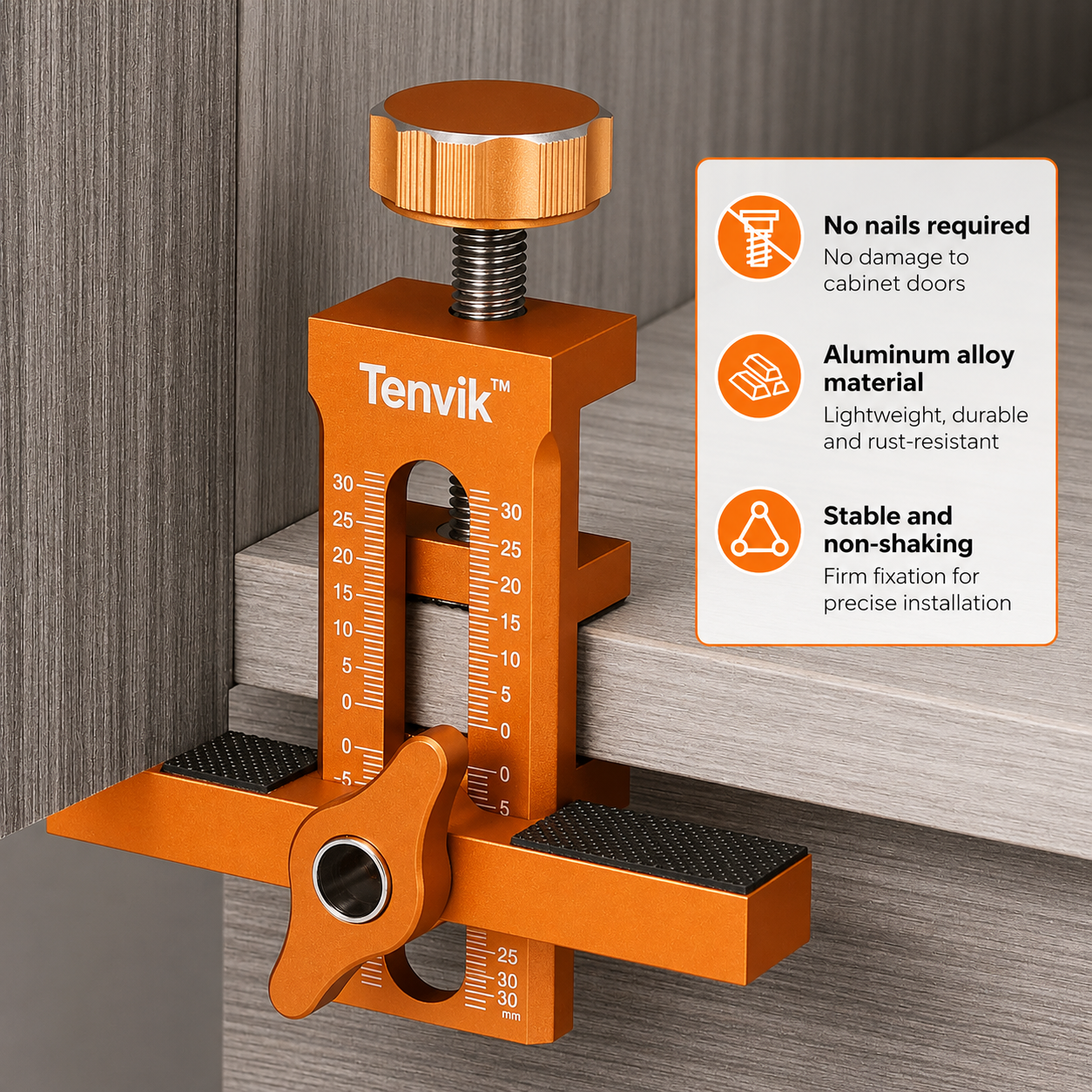

Cabinet Door Mounting Jig
Aluminum frameOne-person install

Cabinet Door Mounting Jig

The jig holds the door in place while you set the gap, so you are not balancing it on your knee. Dial the reveal to 0.1 mm, drill, hang, move to the next door.

$40.00 $69.99 -43%

16 customers with paid orders

Style1x Positioner

30-day returnsSecure checkout

VisaMastercardAmerican ExpressApple PayGoogle PayPayPal
0.1 mmMicro-adjust knobs
7–40 mmDoor thickness range
12.6 ozLight aluminum body
SoloNo helper holding the door

Hung in three steps

  1. Set the jig

    Place it under the top hinge position and tighten the knobs to grip the door.

  2. Dial the gap

    Use the micro-adjust knobs to set the top and side reveal. Check both corners.

  3. Drill and hang

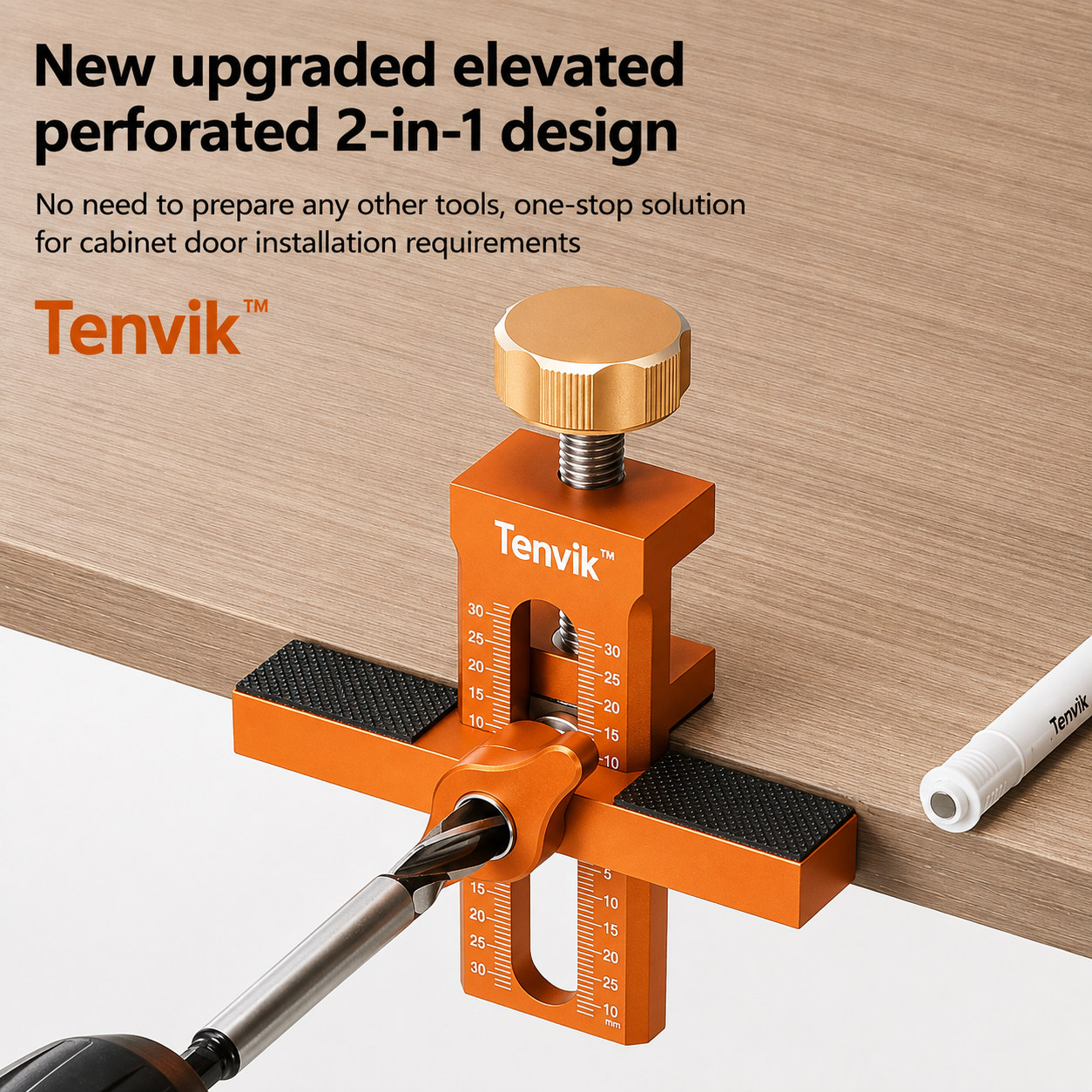

    Bore the hinge holes through the drill guide, then fit the hinges and hang the door.

Why the gaps come out even

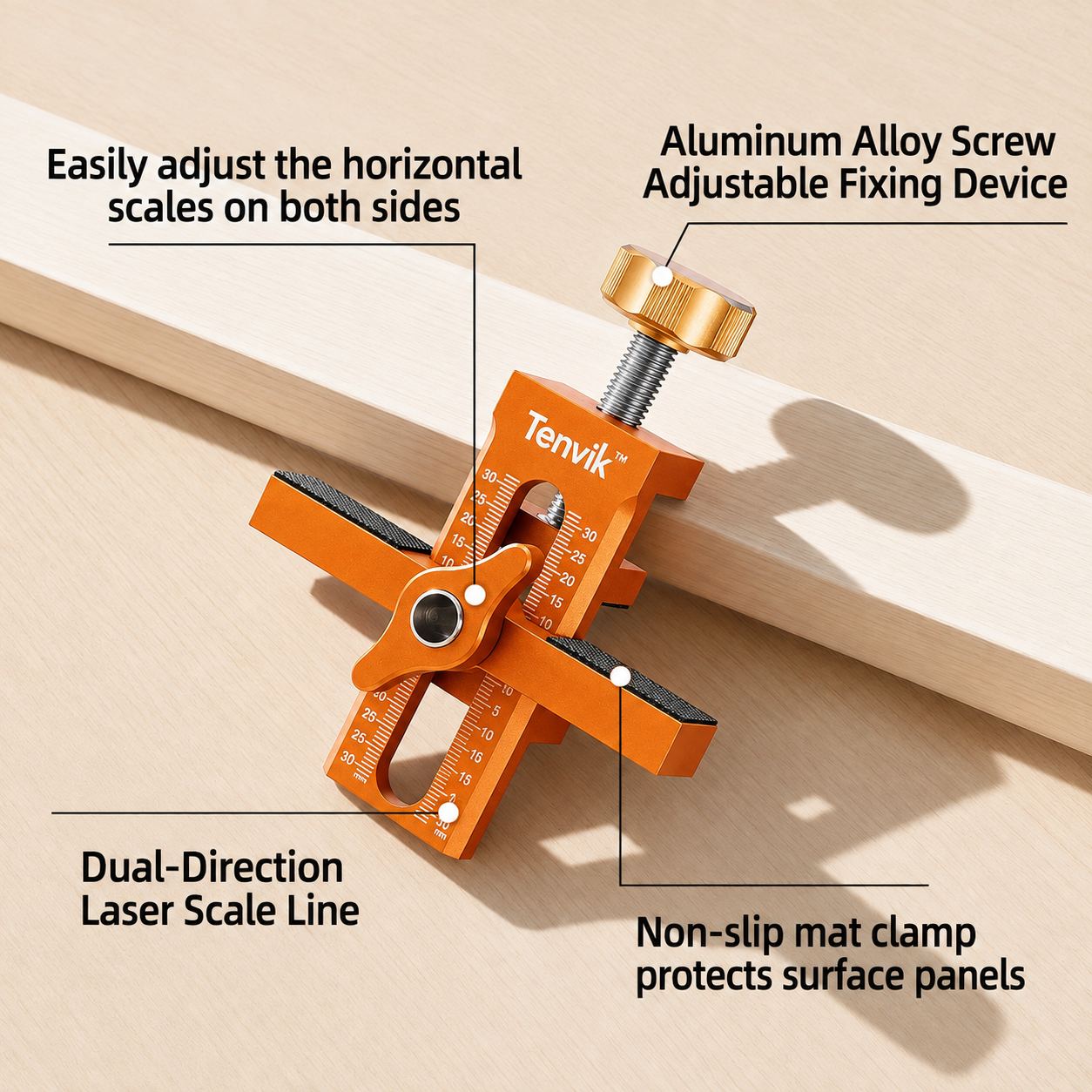

  • Knobs move the door in 0.1 mm steps, so top matches bottom without shims.

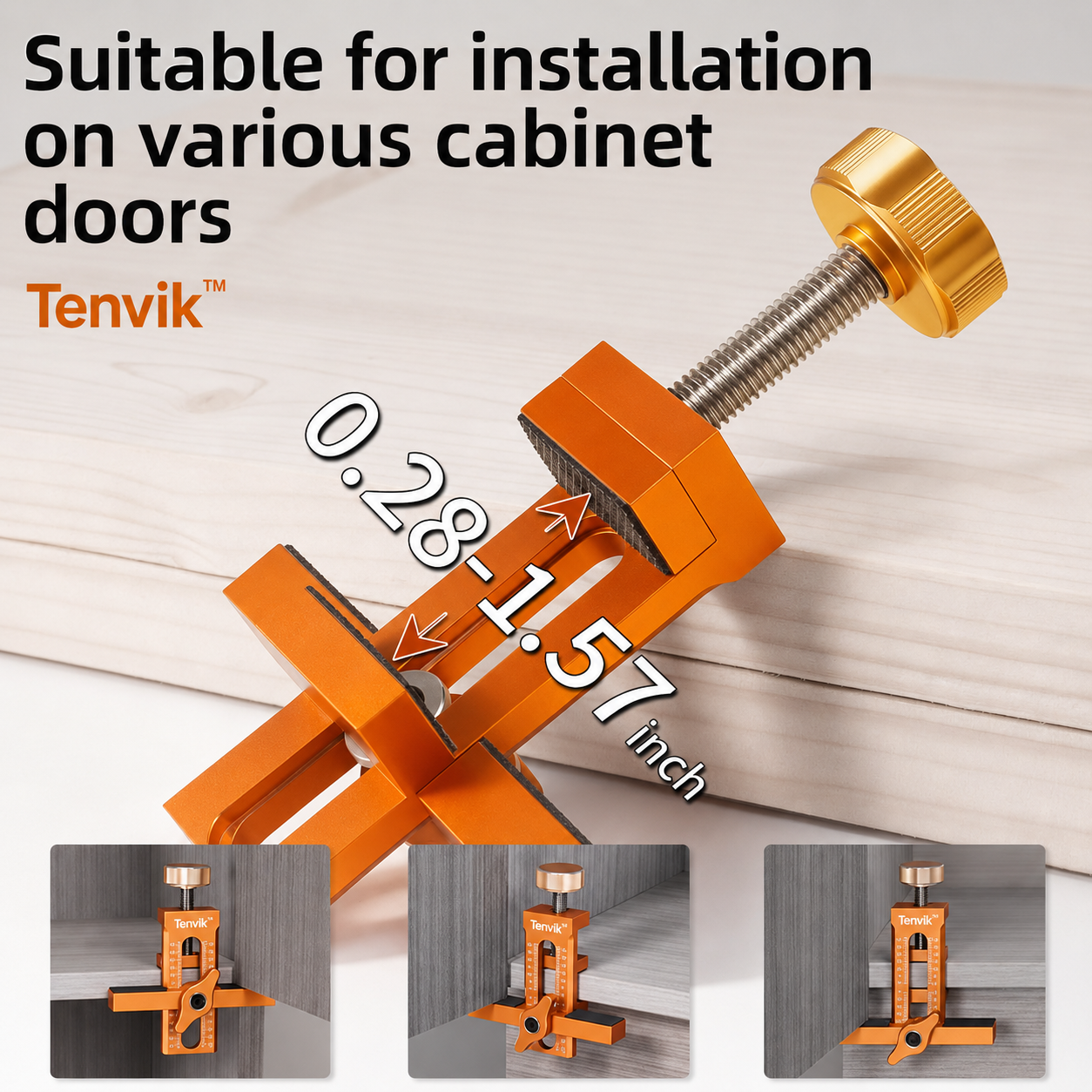

  • One frame takes doors from 7 to 40 mm thick, frameless or face-frame.
  • Rubber pads grip without scratching a finished door.
  • Adjustment range of 0 to 2.36 in covers tight modern gaps and wide reveals.

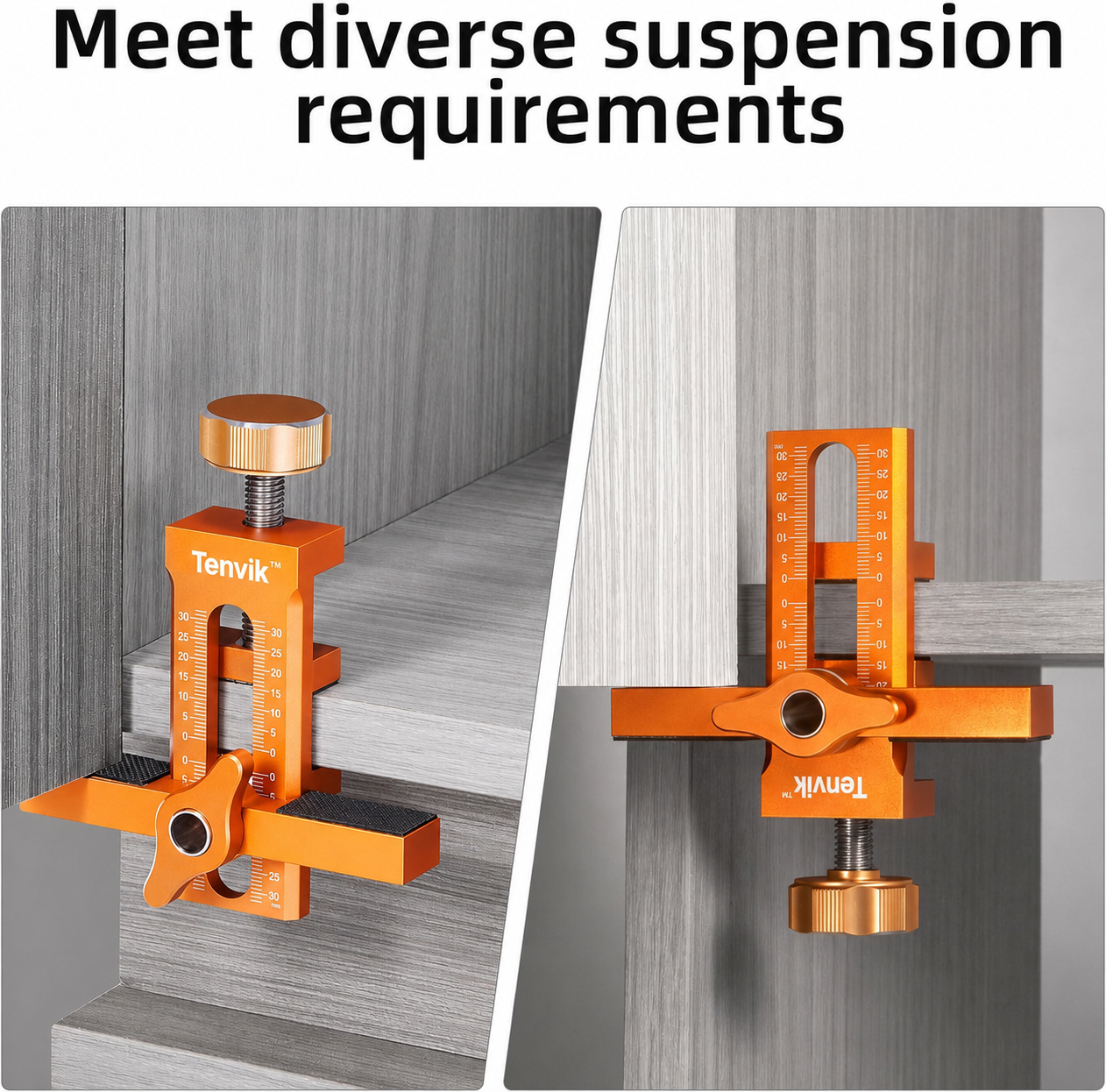

Cabinet door mounting jig holding a door on a cabinet

Specifications

MaterialAluminum alloy
Door thickness7–40 mm
Adjustment precision0.1 mm
Positional range0 to 2.36 in

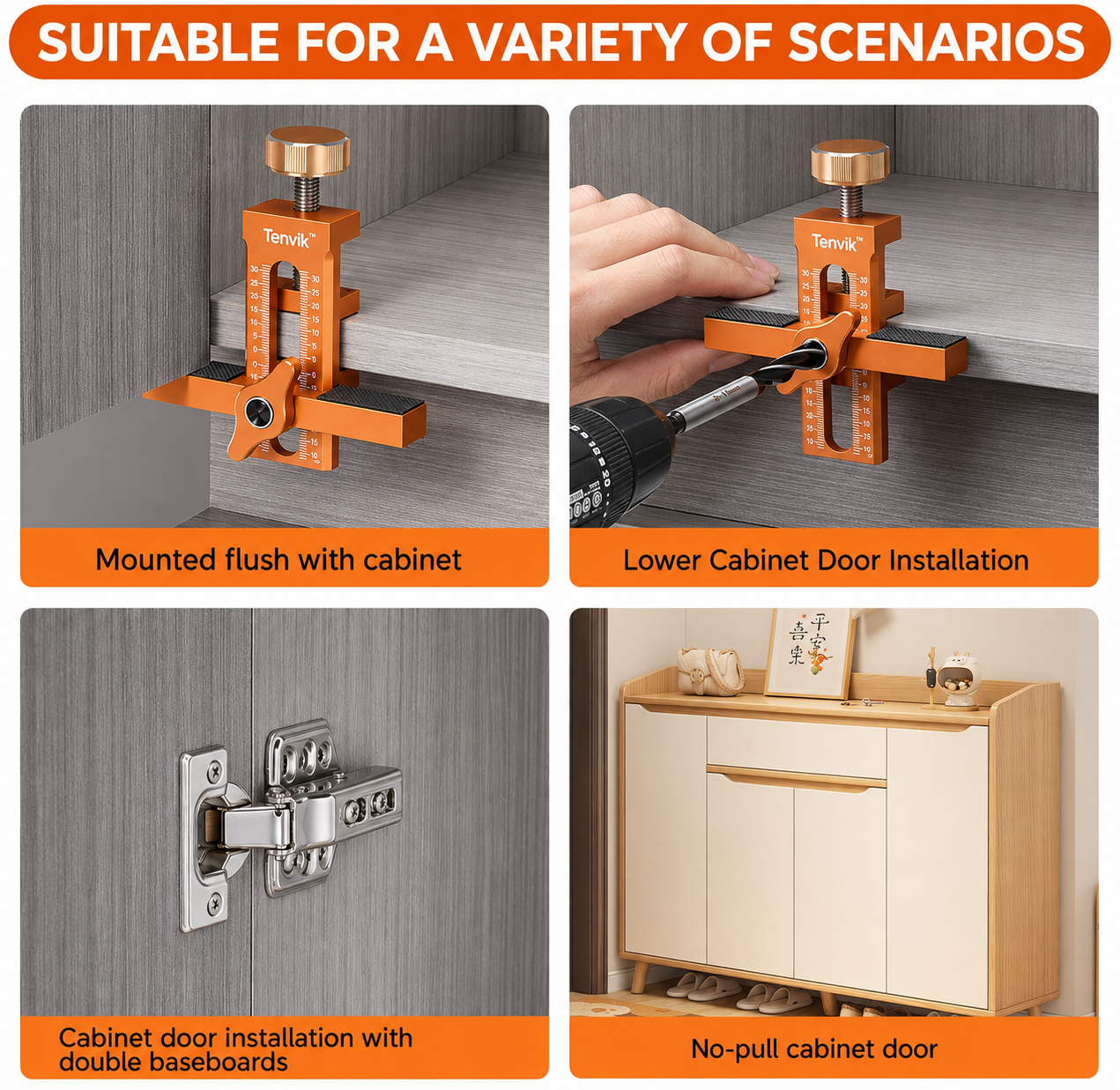

Cabinet typesFrameless and face-frame
Surface protectionNon-slip rubber pads

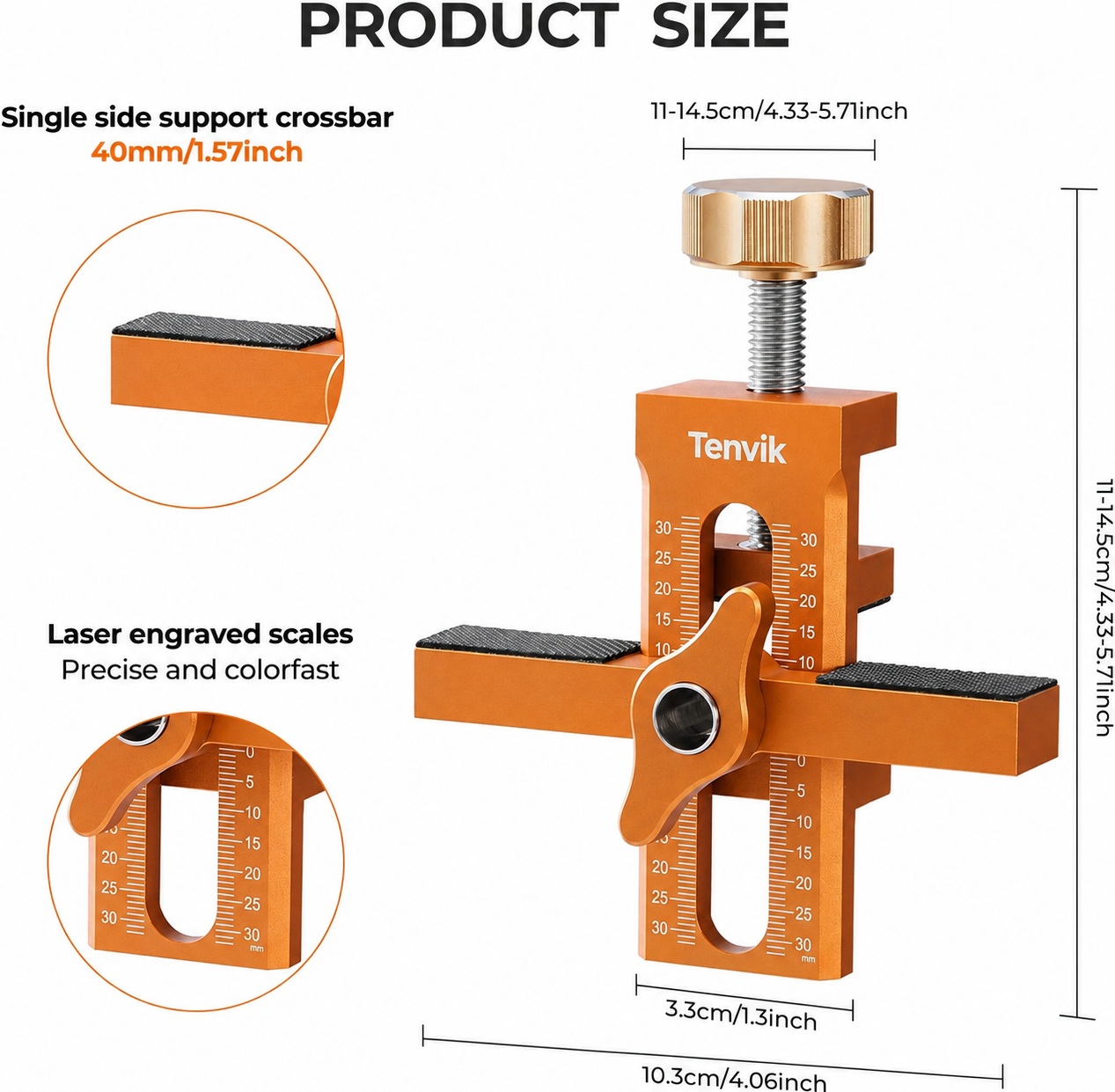

Dimensions5.51 × 5.12 × 2.72 in
Weight12.6 oz (360 g)

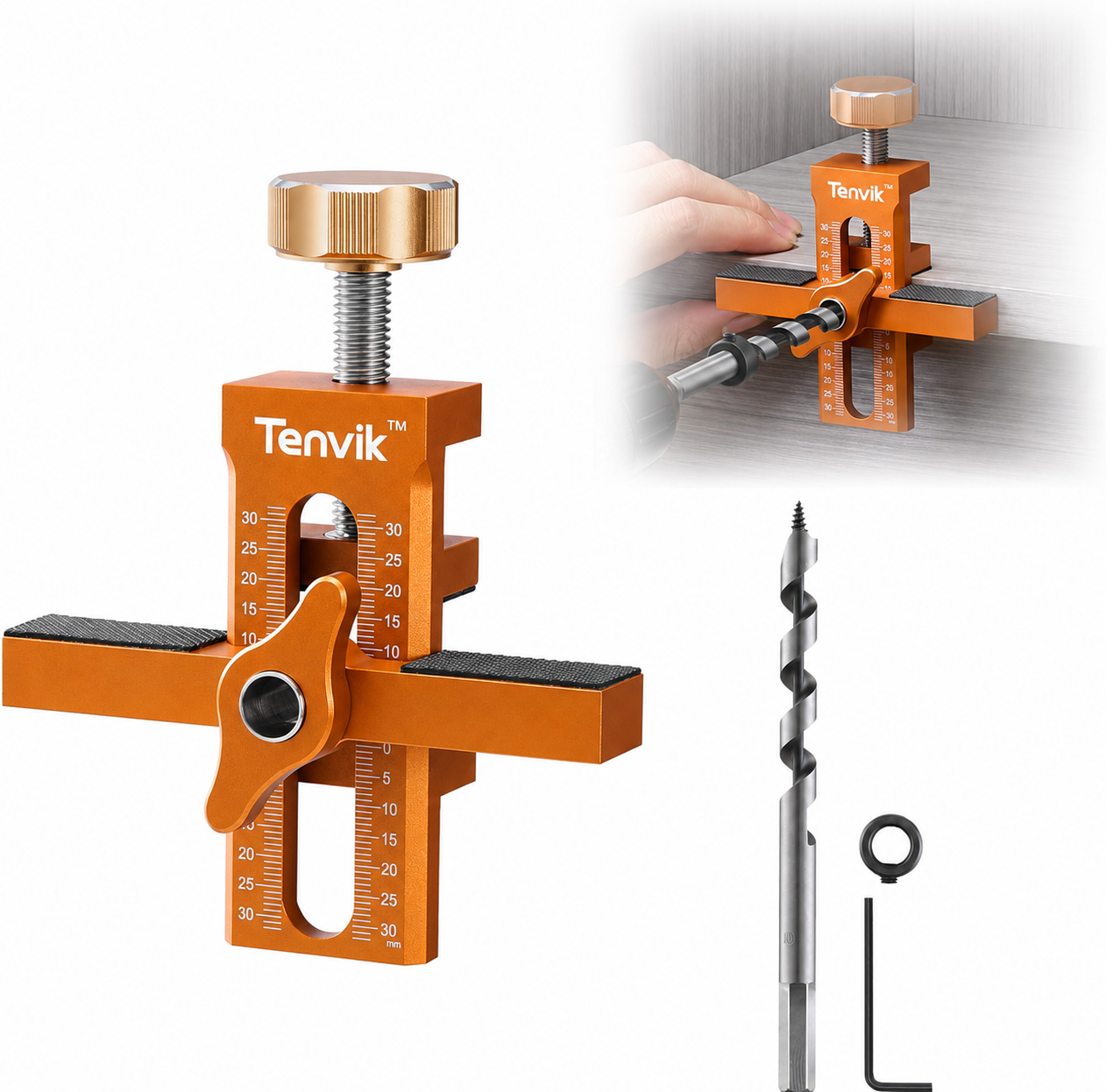

In the boxCabinet door positioner, drill hole guide

Questions

Does it work on face-frame cabinets?

Yes. It works on frameless and face-frame cabinets.

Which door thickness?

Any door from 7 mm to 40 mm thick, with no extra parts.

Will it mark the door?

The contact points are rubber pads, so you do not need tape on finished doors.

What if it doesn't work for me?

Return it unused within 30 days. Contact us with your order number and we will walk you through it.

Customer reviews

4.88 reviews
  1. 5★6
  2. 4★2
  3. 3★0
  4. 2★0
  5. 1★0
Marcus T.Verified buyer
★★★★★

Finally built a run of face-frame cabinets where the doors hang straight. No shims, no re-hanging. This thing is a lifesaver on a quick job.

Pack: 1x Positioner
Sophie L.Verified buyer
★★★★★

The rubber pads are the detail I didn't know I needed — zero scratches on the finish. Micro-adjustment means my gap is the same on all four edges.

Pack: 1x Positioner
Derek B.Verified buyer
★★★★★

Works on frameless and face-frame. I own a couple of brands that do one or the other — this one tool covers both shops.

Pack: 1x Positioner
Elena M.Verified buyer
★★★★☆

Solid aluminium, light enough to carry one-handed. Only thing is learning the adjustment knobs takes a job or two, but then it's automatic.

Pack: 1x Positioner
James C.Verified buyer
★★★★★

DIY cabinet reface. Hung 8 cabinet doors solo and they all lined up flush. Saved me a call to a cabinet guy.

Pack: 1x Positioner
Rebecca N.Verified buyer
★★★★★

The drill hole guide is spot-on for hinge boring. Takes the guesswork out of where to start the bit.

Pack: 1x Positioner
Nathan K.Verified buyer
★★★★★

Frameless cabinetry in a modern kitchen. This jig lets you dial in gaps tighter than anything I've done by hand.

Pack: 1x Positioner
Amy R.Verified buyer
★★★★☆

Good tool, solid feel. Takes a bit of care to set the first time — once you know the system, it's fast.

Pack: 1x Positioner
