Cabinet Hinge Positioning Jig
Toggle clampRepeatable reveal

Cabinet Hinge Positioning Jig

Clamp it to the door, check the line in the sight window, set the reveal once. Every hinge after that lands in the same place as the first.

$24.00 $38.97 -38%

22 sold in the last 30 days

16 customers with paid orders

Set1x Positioning Jig

30-day returnsSecure checkout

VisaMastercardAmerican ExpressApple PayGoogle PayPayPal
Hands-freeSelf-locking toggle clamp
WindowSee your reference line before drilling
Locked stopSet the reveal once
RepeatSame gap on every door

Hinges placed in three steps

  1. Clamp it on

    Lock the toggle clamp onto the door edge.

  2. Align and set

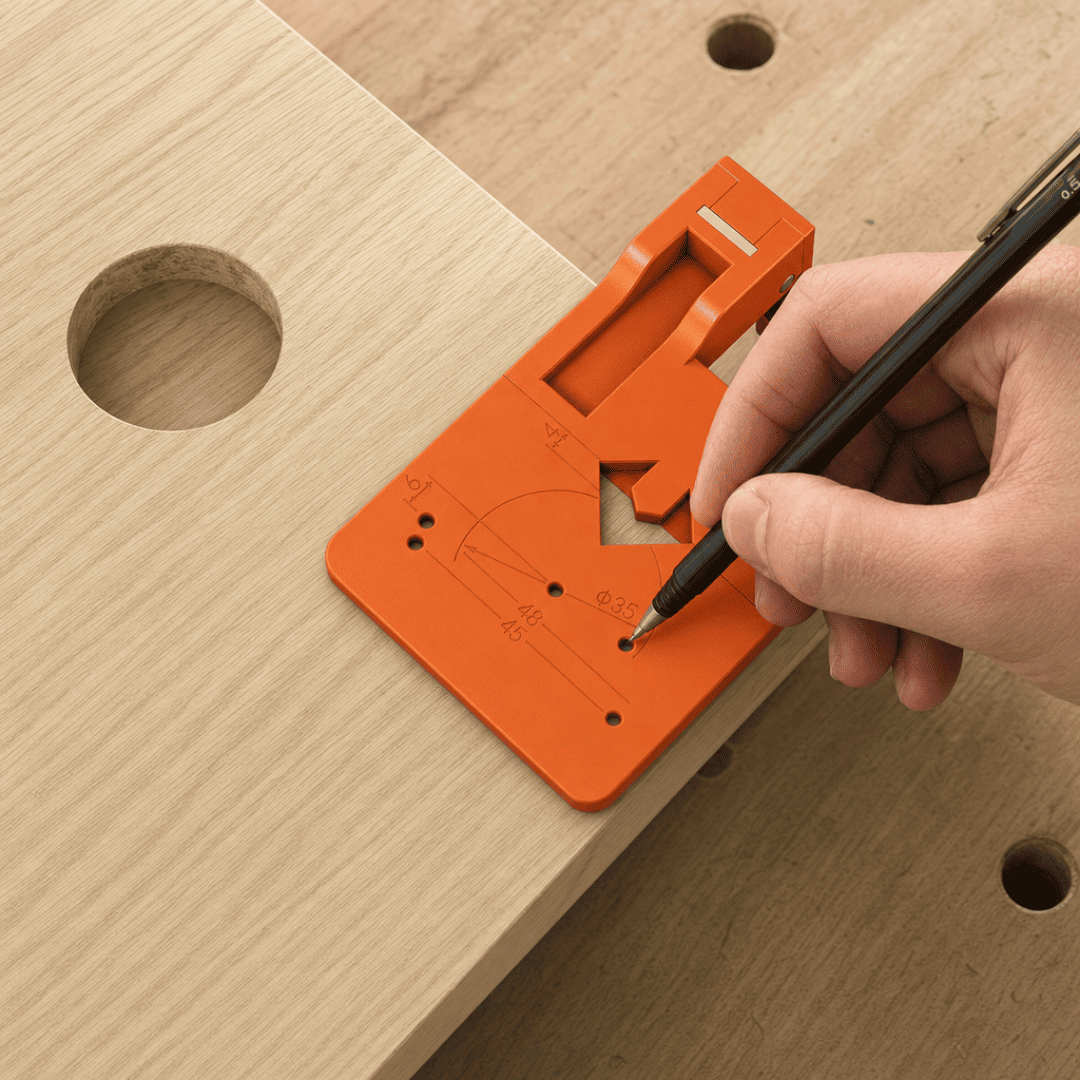

    Line the sight window up with your mark and set the stop to your reveal.

  3. Drill and repeat

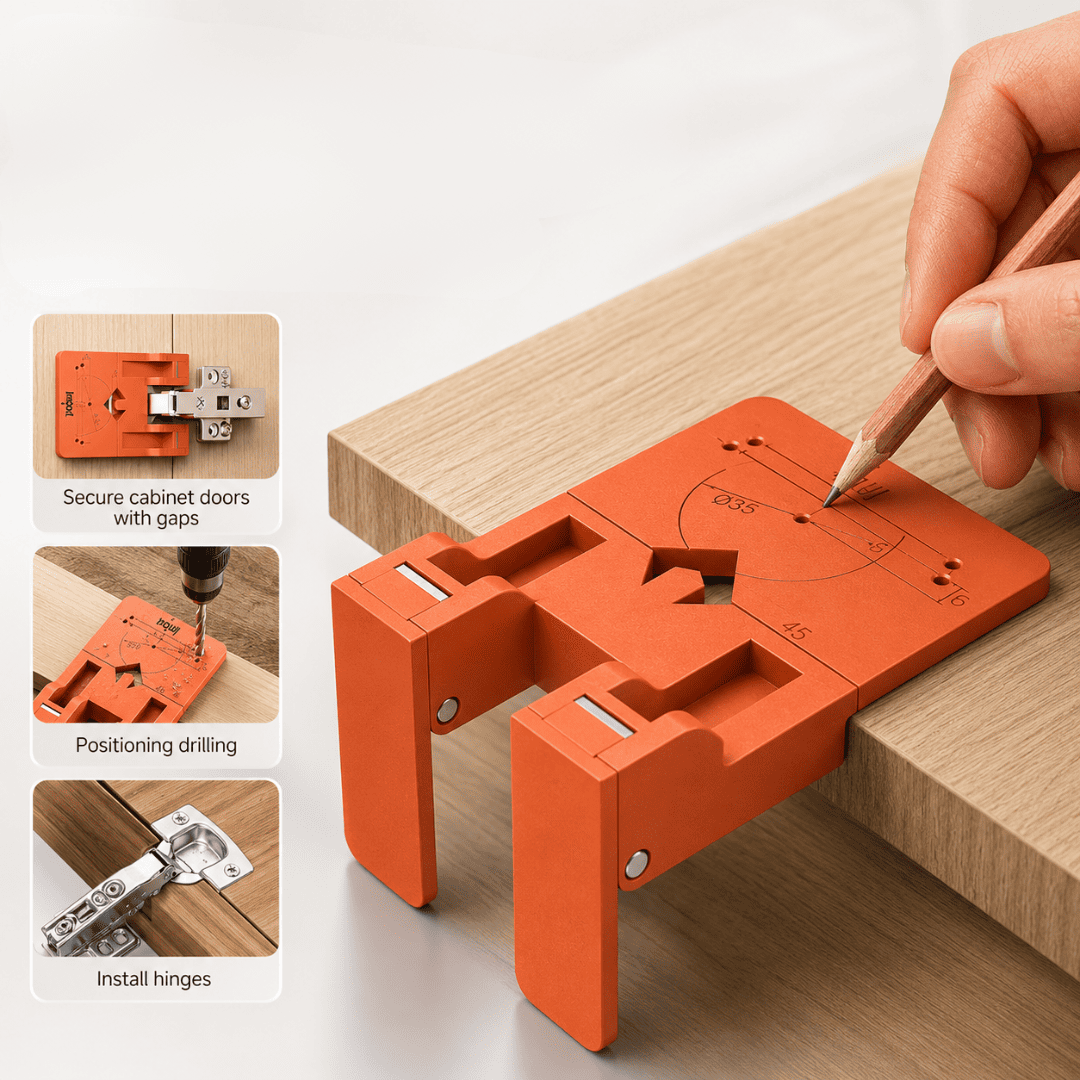

    Drill the hinge holes through the guide, then move to the next door with the same setting.

Why every door matches

  • The toggle clamp holds the jig still while you drill, so nothing shifts.
  • The sight window lets you check the reference line before the first hole.
  • The adjustable stop locks with a screw, so the reveal does not drift between doors.
  • Made for concealed hinges on kitchen and bath cabinets.

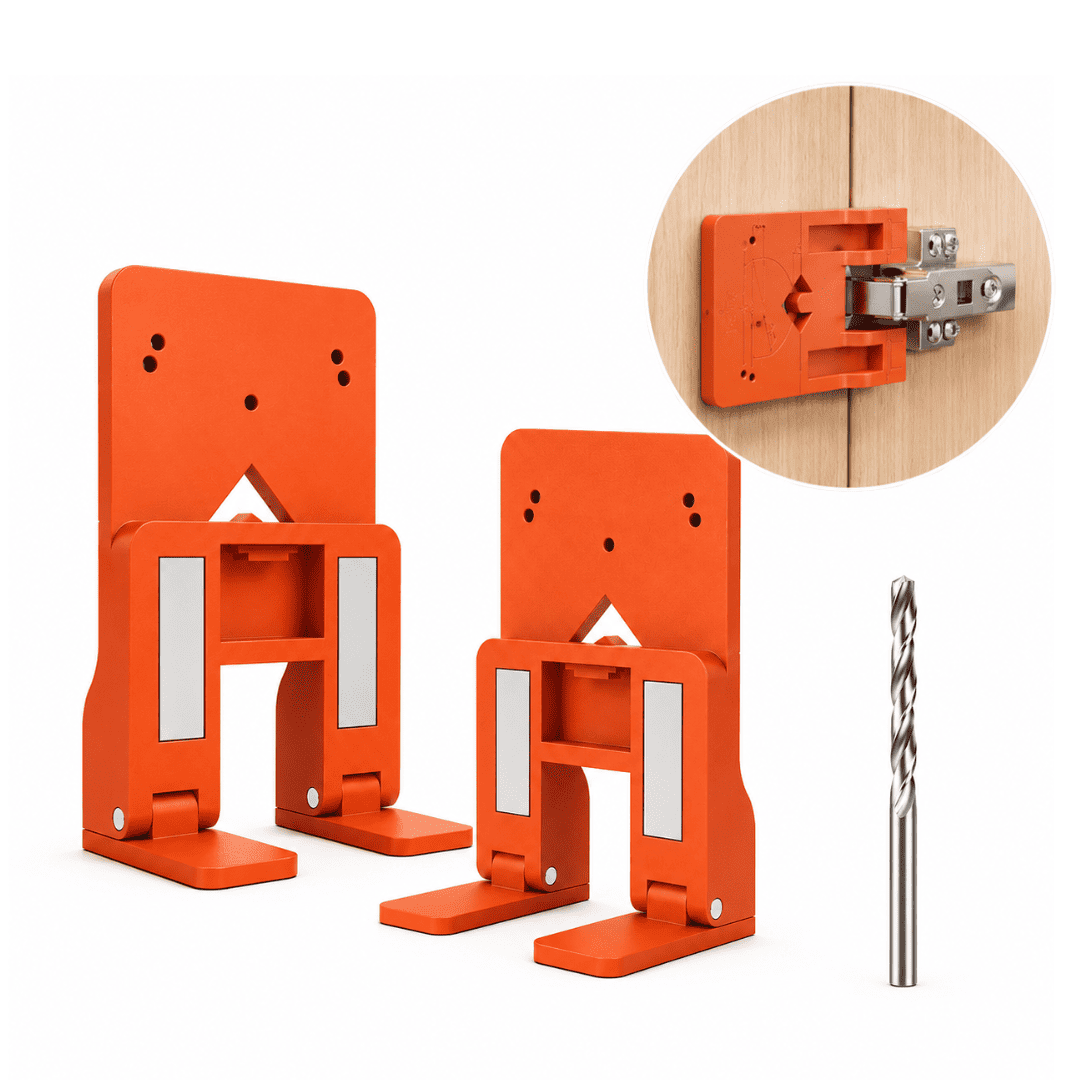

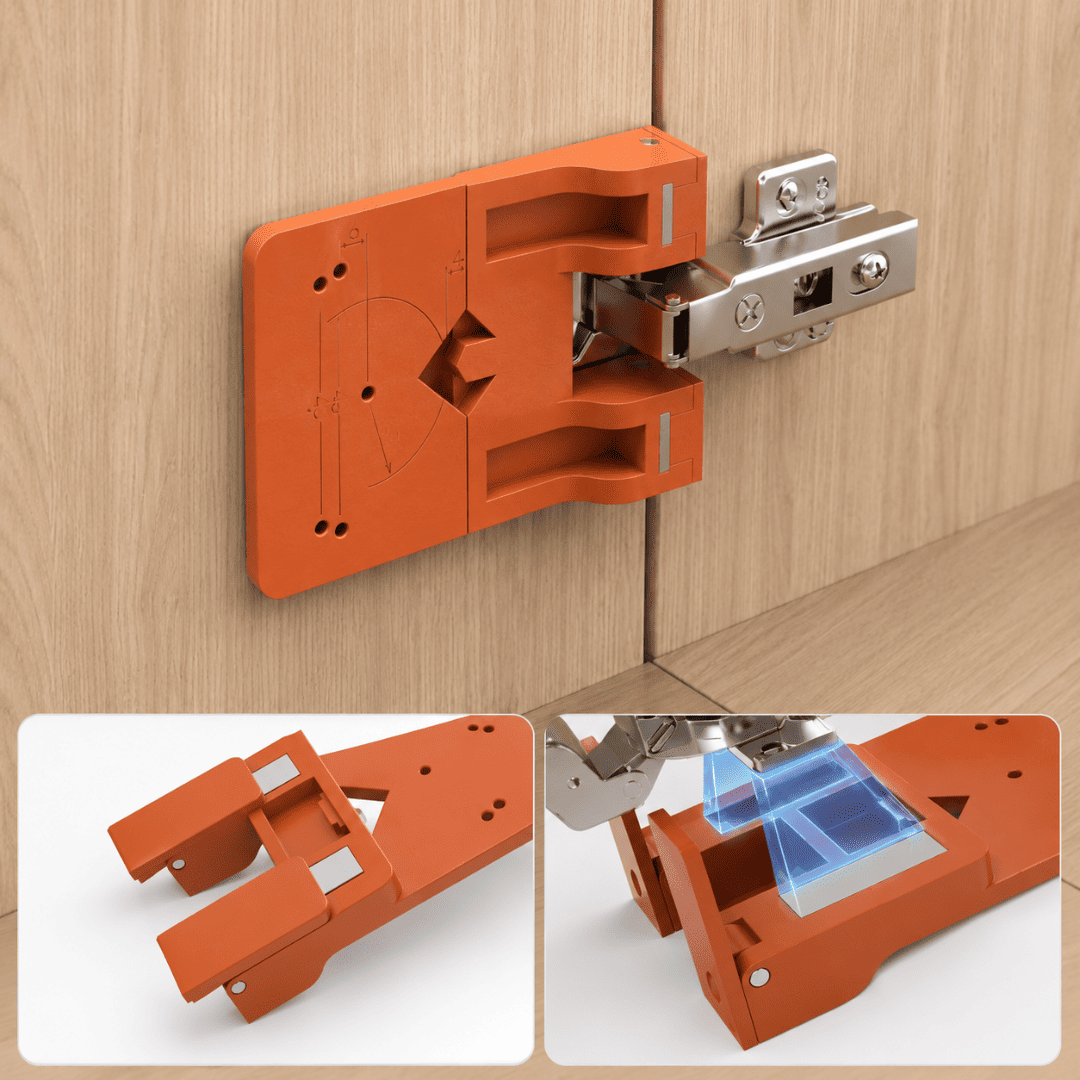

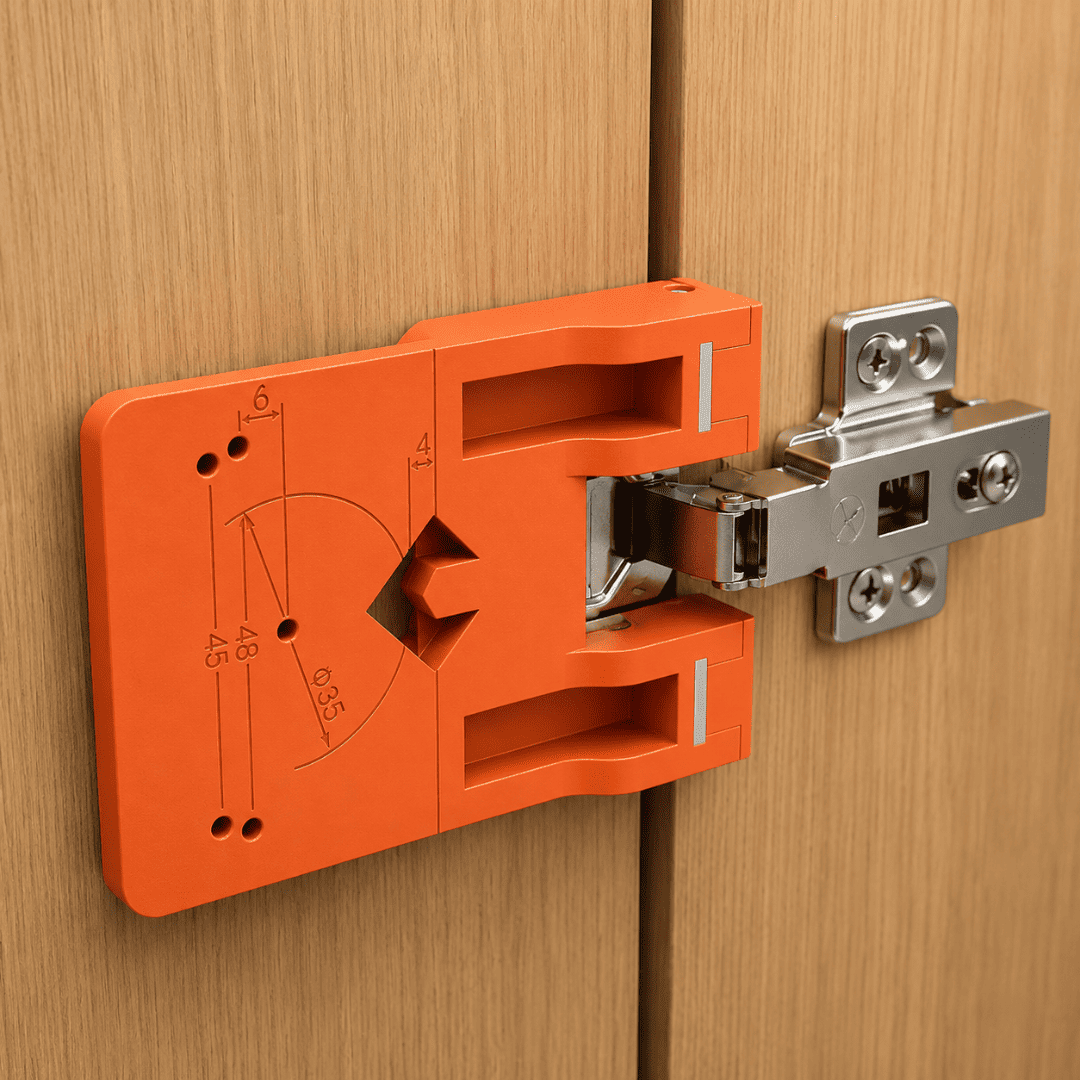

Hinge positioning jig clamped to a cabinet door edge

Specifications

ClampingSelf-locking toggle clamp
AlignmentBuilt-in sight window
Reveal settingAdjustable stop with locking screw
Typical useConcealed hinge mounting, door gap setting, kitchen cabinets

Questions

Do I still need to measure each door?

Only once. Set the stop on the first door and the rest follow the same setting.

Is it beginner friendly?

Yes. Clamp, align with the window, drill. The stop does the measuring.

Does it bore the 35 mm hinge cup?

This jig positions the hinge holes. For the 35 mm cup, pair it with our concealed hinge jig.

What if it doesn't work for me?

Return it unused within 30 days. Contact us with your order number and we will walk you through it.
