Concealed Hinge Jig — 35mm Hole Drill Guide
35 mm standardBit included

Concealed Hinge Jig — 35mm Hole Drill Guide

Press the jig to the door edge and drill. The 35 mm hinge cup lands where it belongs, with no layout and no tape measure.

$30.00 $54.99 -45%

1 sold in the last 30 days

16 customers with paid orders

Style1x Hinge Jig

30-day returnsSecure checkout

VisaMastercardAmerican ExpressApple PayGoogle PayPayPal
35 mmStandard concealed hinge cup
Self-holdingGrips the edge while you drill
Bit includedSharp 35 mm bit in the box
No layoutThe jig is the measurement

Hinge cups in three steps

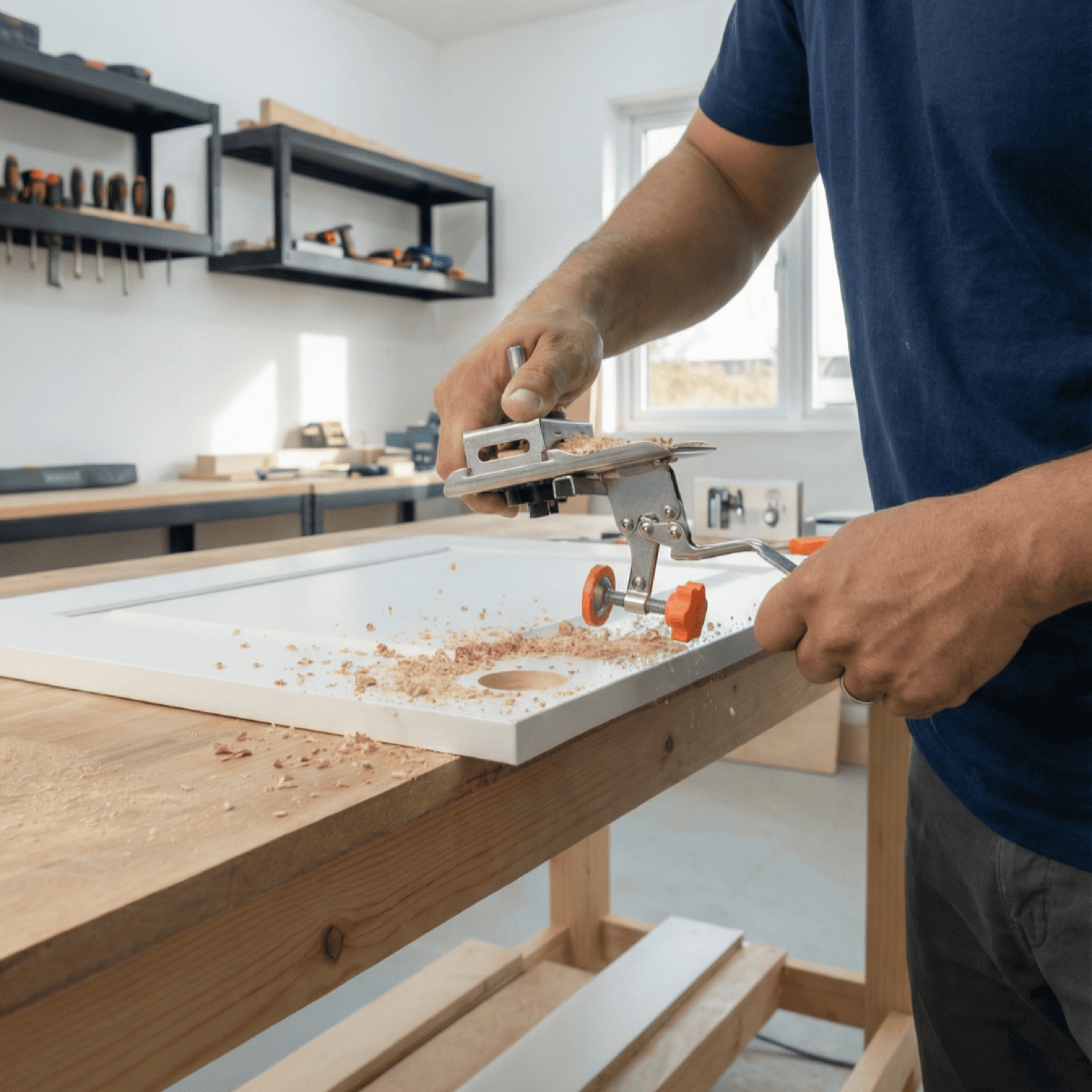

  1. Seat the jig

    Place it on the door edge at the hinge position. It holds itself in place.

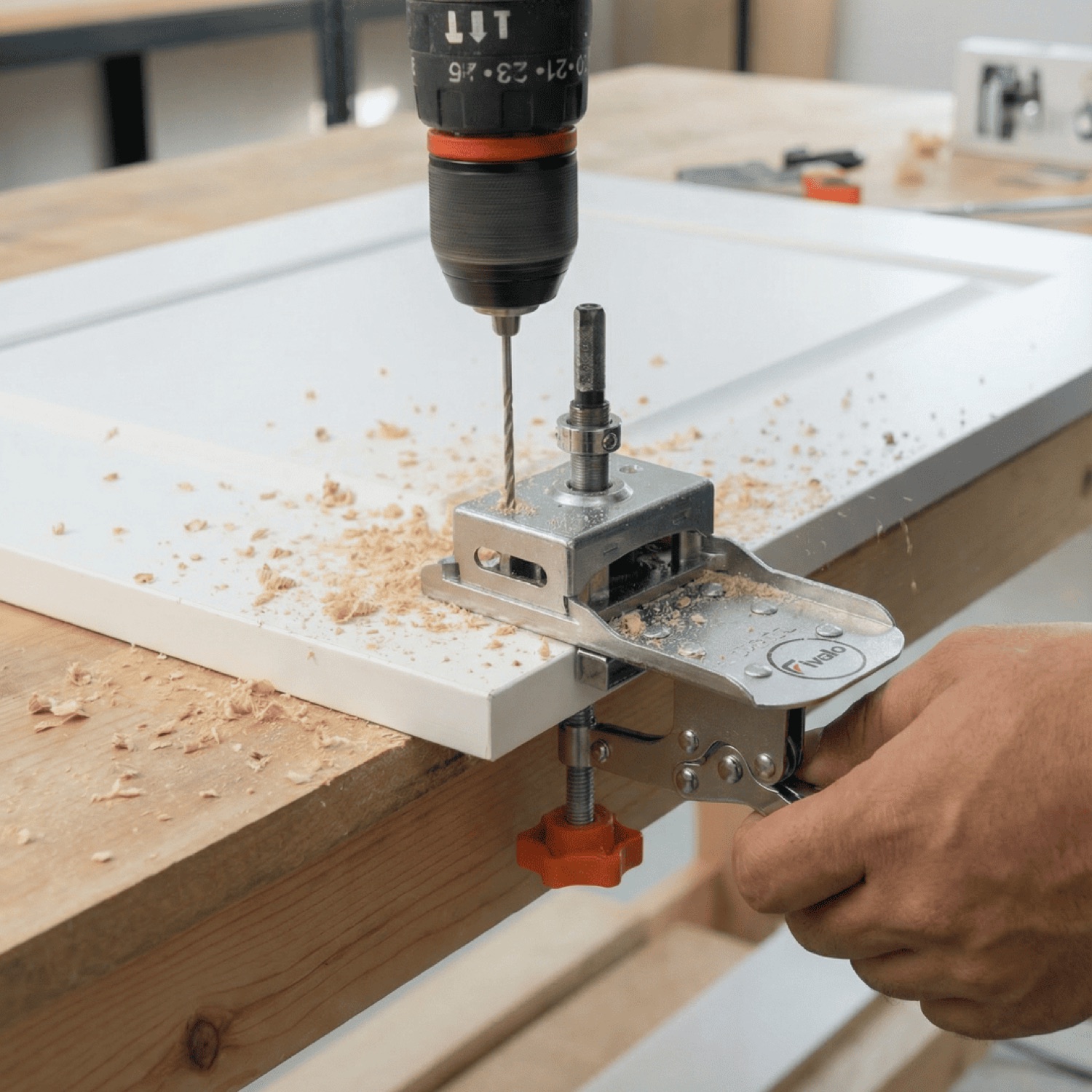

  2. Drill the cup

    Run the included 35 mm bit through the guide. It stays straight to depth.

  3. Fit the hinge

    Screw the concealed hinge into the cup and hang the door.

Why the hole lands right

  • The aluminum body grips the door edge, so you do not need a clamp.
  • The guide sets the hole position for you. Nothing to mark.
  • Drills the 35 mm cup used by European-style concealed hinges.
  • Works on cabinet doors, wardrobes and drawer fronts.
Concealed hinge jig on the edge of a cabinet door

Specifications

Hole size35 mm
MaterialAluminum alloy
DesignSelf-holding
Use casesCabinet doors, wardrobes, drawer fronts, furniture assembly

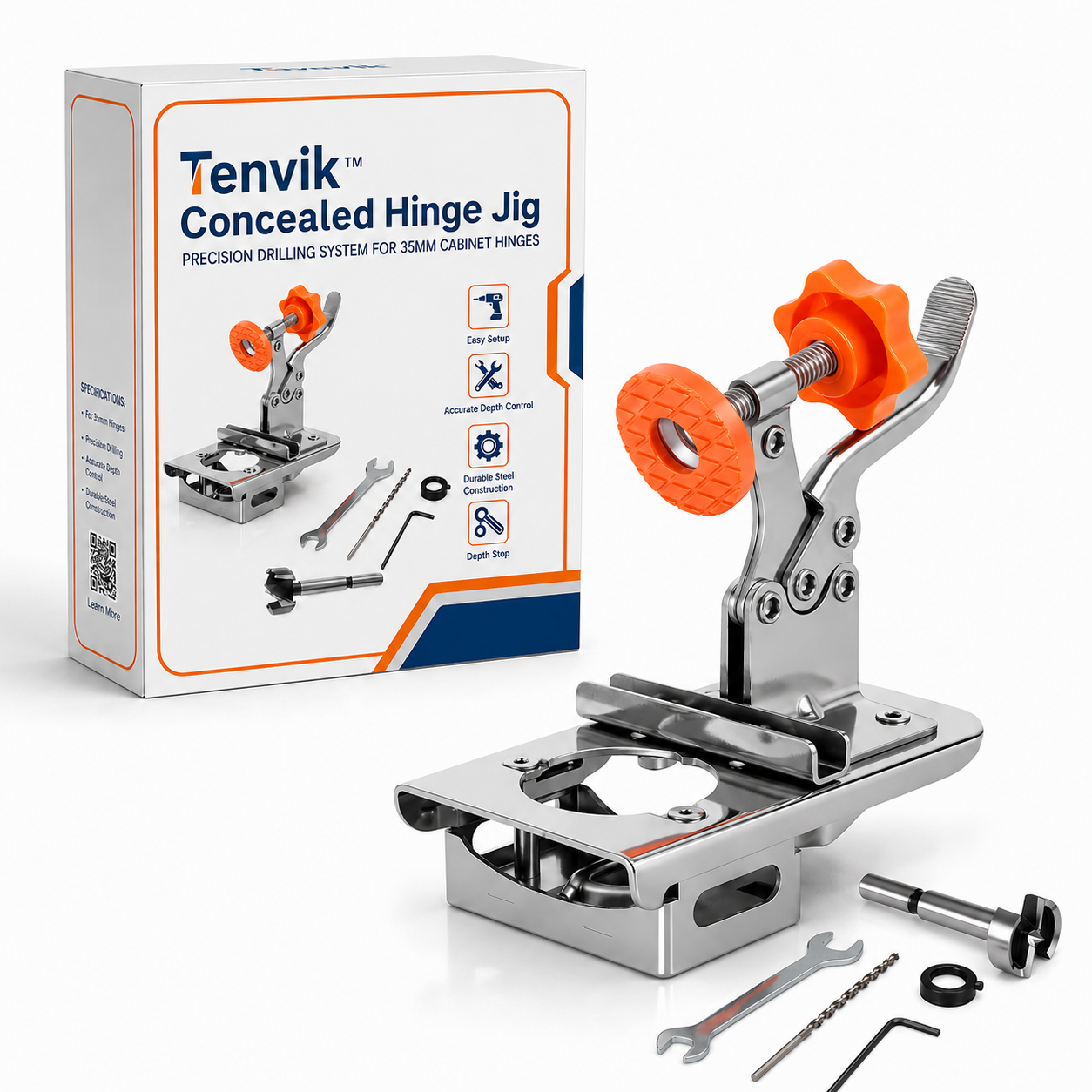

In the boxConcealed hinge jig, 35 mm drill bit

Questions

Do I need to measure anything?

No. Place the jig on the edge and drill. The jig sets the position.

How does it stay put?

The self-holding body grips the door edge, so both hands stay on the drill.

Is the bit included?

Yes, a 35 mm bit ready to use.

What if it doesn't work for me?

Return it unused within 30 days. Contact us with your order number and we will walk you through it.

Customer reviews

4.88 reviews
  1. 5★6
  2. 4★2
  3. 3★0
  4. 2★0
  5. 1★0
Marcus H.Verified buyer
★★★★★

Built a custom dresser with hidden hinges and this jig was the only reason the doors hung square. Drilled eight holes without a single misalignment.

Pack: 1x Hinge Jig
Sylvia P.Verified buyer
★★★★★

Kitchen cabinet retrofit. Measured wrong holes twice before I bought this. Used it for the rest and they all sit perfect. The self-holding design means you're not wrestling it into place.

Pack: 1x Hinge Jig
Ricardo O.Verified buyer
★★★★★

Furniture maker here. My template approach is faster but this jig is dead accurate for one-off jobs and customers appreciate the clean work.

Pack: 1x Hinge Jig
Janet M.Verified buyer
★★★★☆

Works great for the task. Wish it came with a spare drill bit since these wear out, but the one included is sharp and the jig itself is solid aluminum.

Pack: 1x Hinge Jig
David K.Verified buyer
★★★★★

Installing new hinges in old cabinets where nothing is square anymore. This jig read the actual angle and gave me a hole in exactly the right spot.

Pack: 1x Hinge Jig
Nora T.Verified buyer
★★★★★

Bought for a single project and ended up keeping it. The aluminum won't rust in my damp workshop and the design is intuitive — no manual needed.

Pack: 1x Hinge Jig
Vincent L.Verified buyer
★★★★★

IKEA hack — replacing the cheap hinges on a wardrobe with proper concealed ones. This jig made sure every hole was exactly where it needed to be.

Pack: 1x Hinge Jig
Amy W.Verified buyer
★★★★☆

Good tool for the job. Drill bit is sharp out of the box. Only note is the jig itself is small so you need a light touch to keep it steady, but practice makes perfect.

Pack: 1x Hinge Jig
