Self Centering Doweling Jig
Steel bushingsSelf-centering

Self Centering Doweling Jig

Line the notch up with your mark, clamp, and drill. The jig centers itself on the board, so the dowel hole lands dead center on any thickness from 17 to 60 mm.

$39.99

16 customers with paid orders

Set1PCS

30-day returnsSecure checkout

VisaMastercardAmerican ExpressApple PayGoogle PayPayPal
3 sizes1/4", 5/16" and 3/8" holes
17–60 mmBoard thickness range
CenterSelf-centering clamp
SpacingPin indexes equal hole spacing

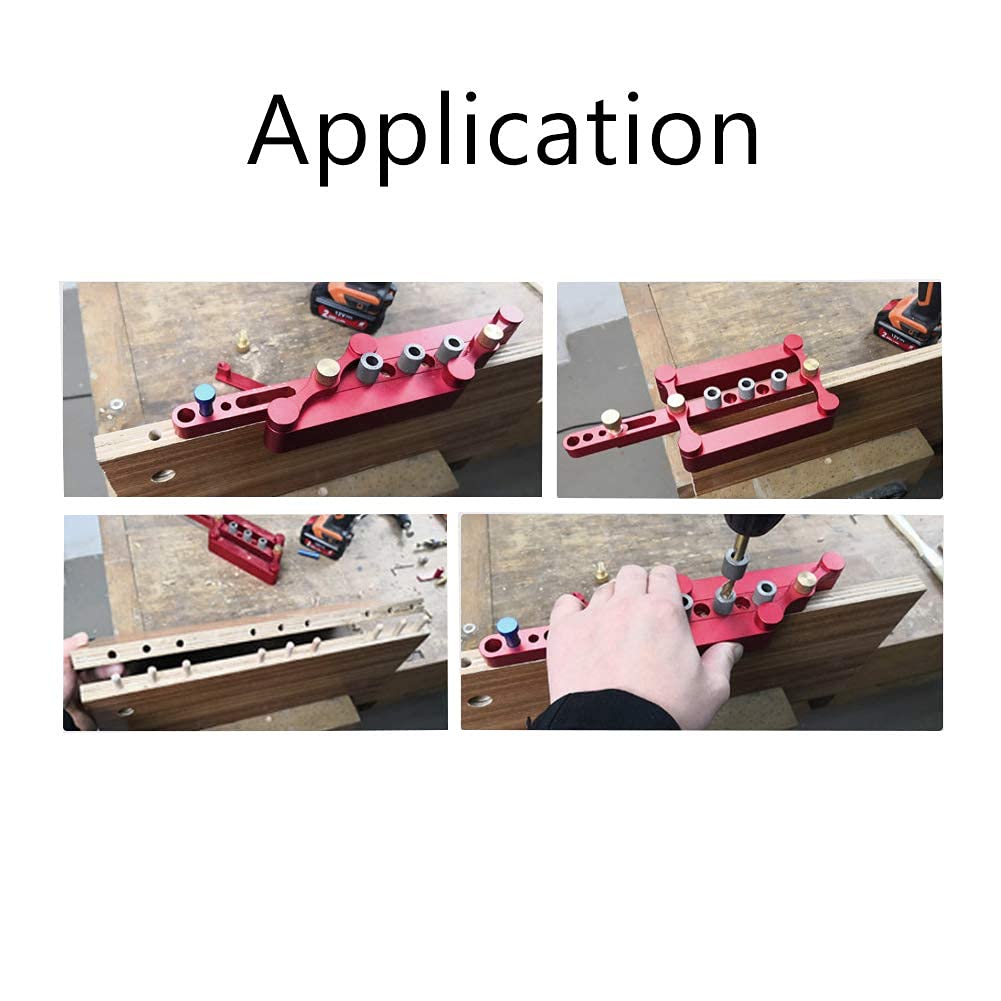

Dowel holes in three steps

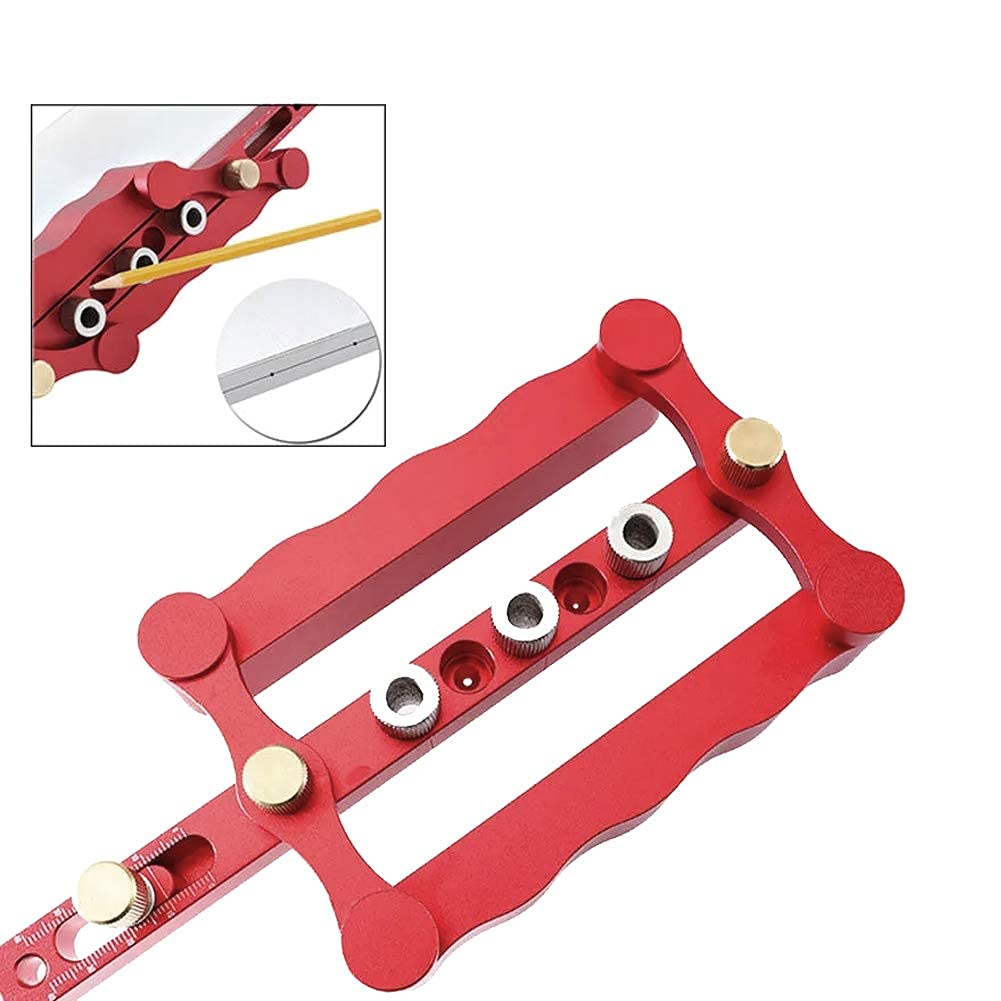

  1. Align the notch

    Line up the notch on the center rod with your mark on the board.

  2. Clamp and drill

    Close the clamp and drill through the steel sleeve.

  3. Index the next

    Drop the supplied pin into the finished hole and drill the next one at the same spacing.

Why the holes land in the middle

  • The clamp closes equally from both sides, so the guide finds the board center.
  • High-strength steel sleeves keep the bit straight and do not wear oversize.
  • The indexing pin spaces a row of holes evenly along an edge.
  • Quick enough for a beginner to master on the first board.
Self centering doweling jig clamped on a board

Specifications

Hole sizes1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm)

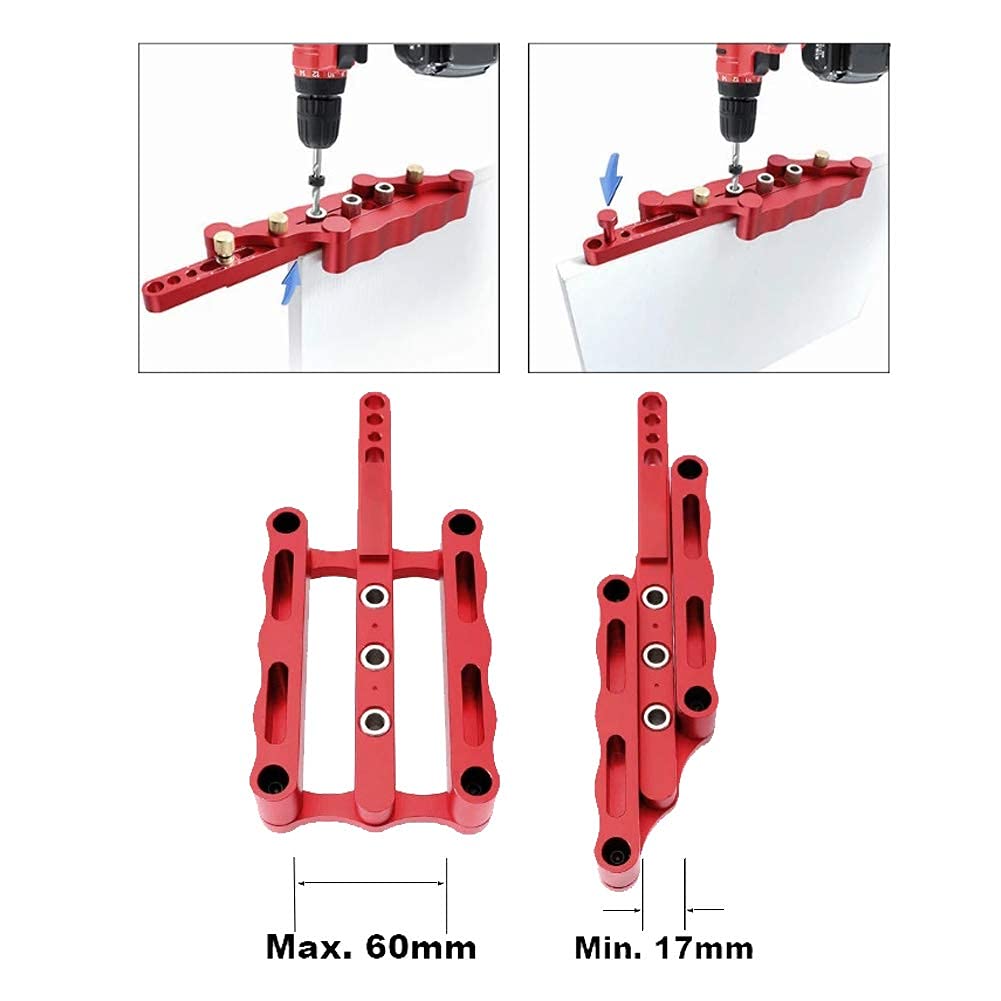

Board thickness5/8" (17 mm) to 2.4" (60 mm)

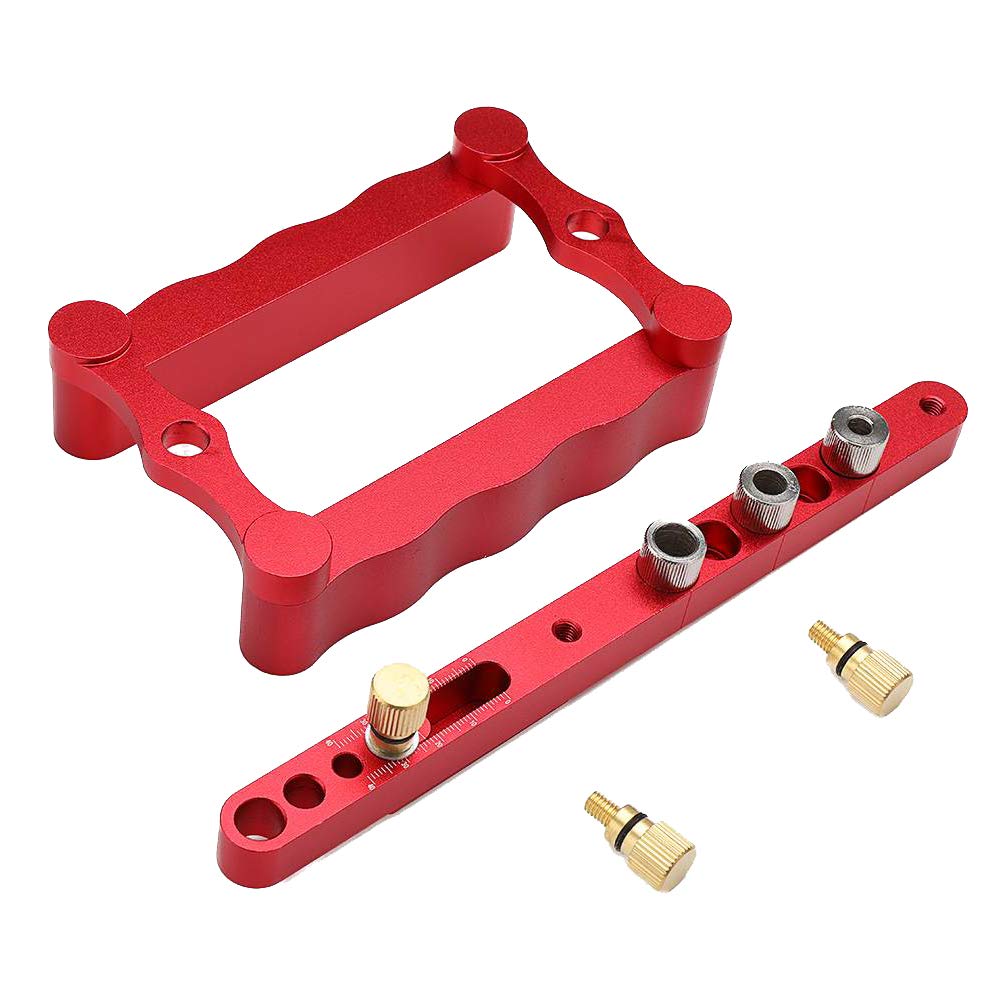

MaterialAluminum guide, high-strength steel bushings

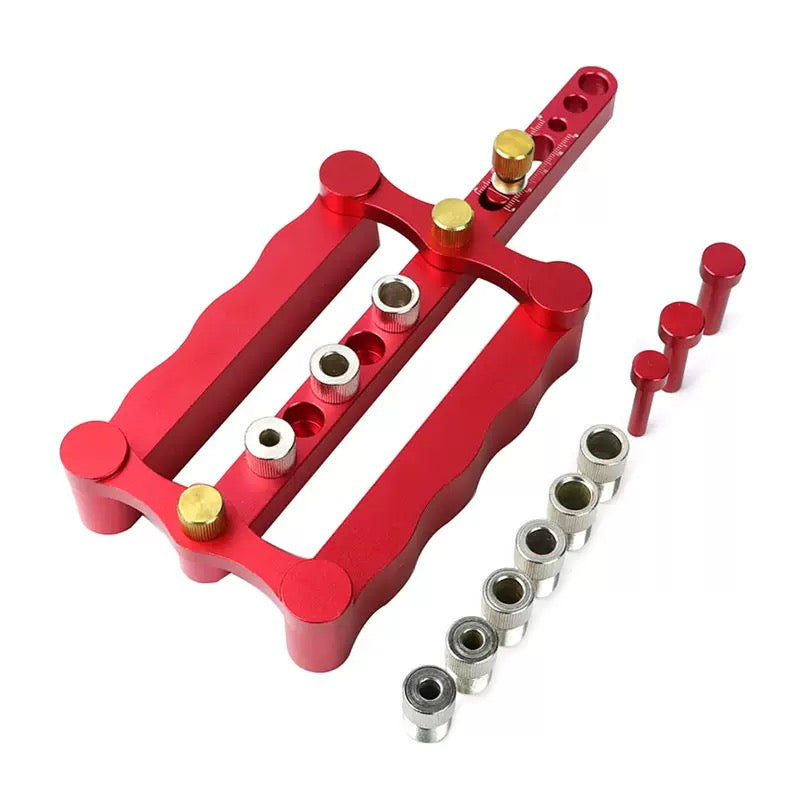

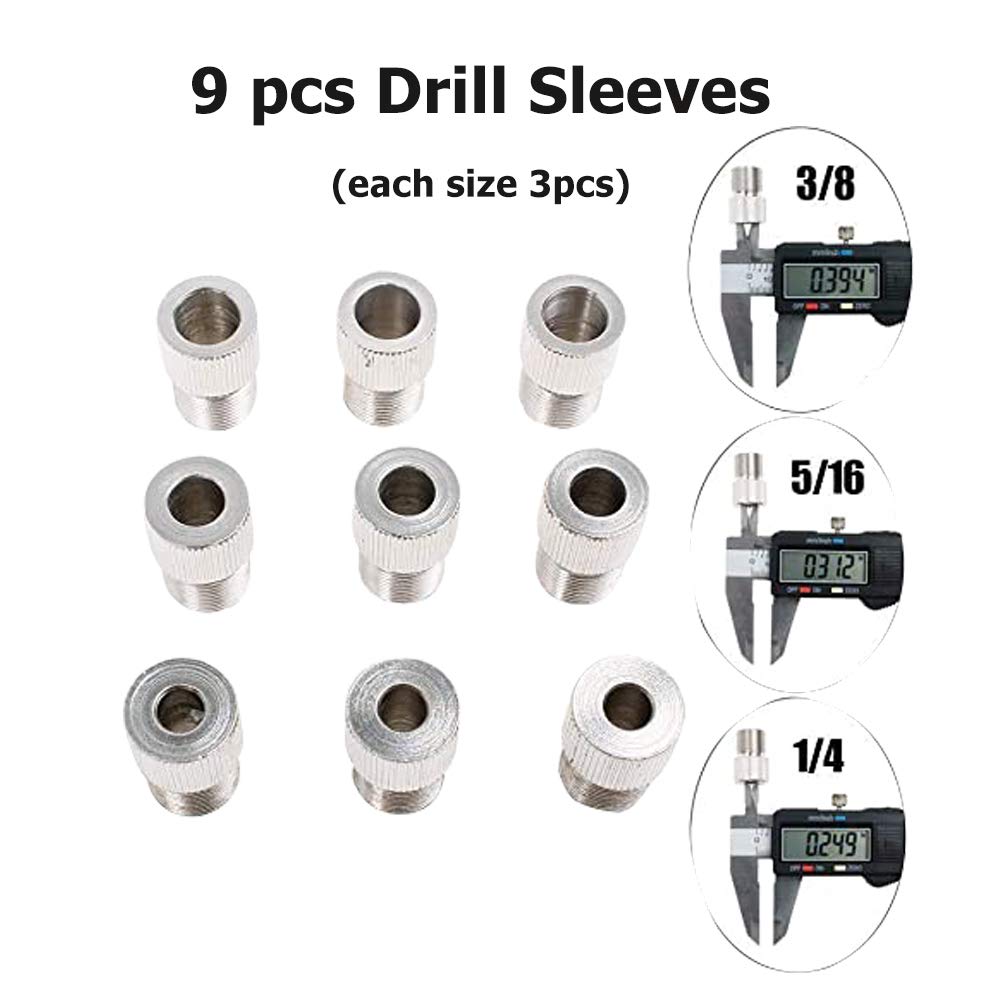

In the boxJig, 3 dowel pins (1/4", 5/16", 3/8"), 3 drill sleeves in each size

Questions

Do I need to measure for center?

No. The jig centers itself on the board.

How do I space a row of holes?

Put the supplied pin in the finished hole and drill the next.

Which board thickness?

17 mm to 60 mm (5/8" to 2.4").

What if it doesn't work for me?

Return it unused within 30 days. Contact us with your order number and we will walk you through it.
